Description
Learn About Electric Operating Table：

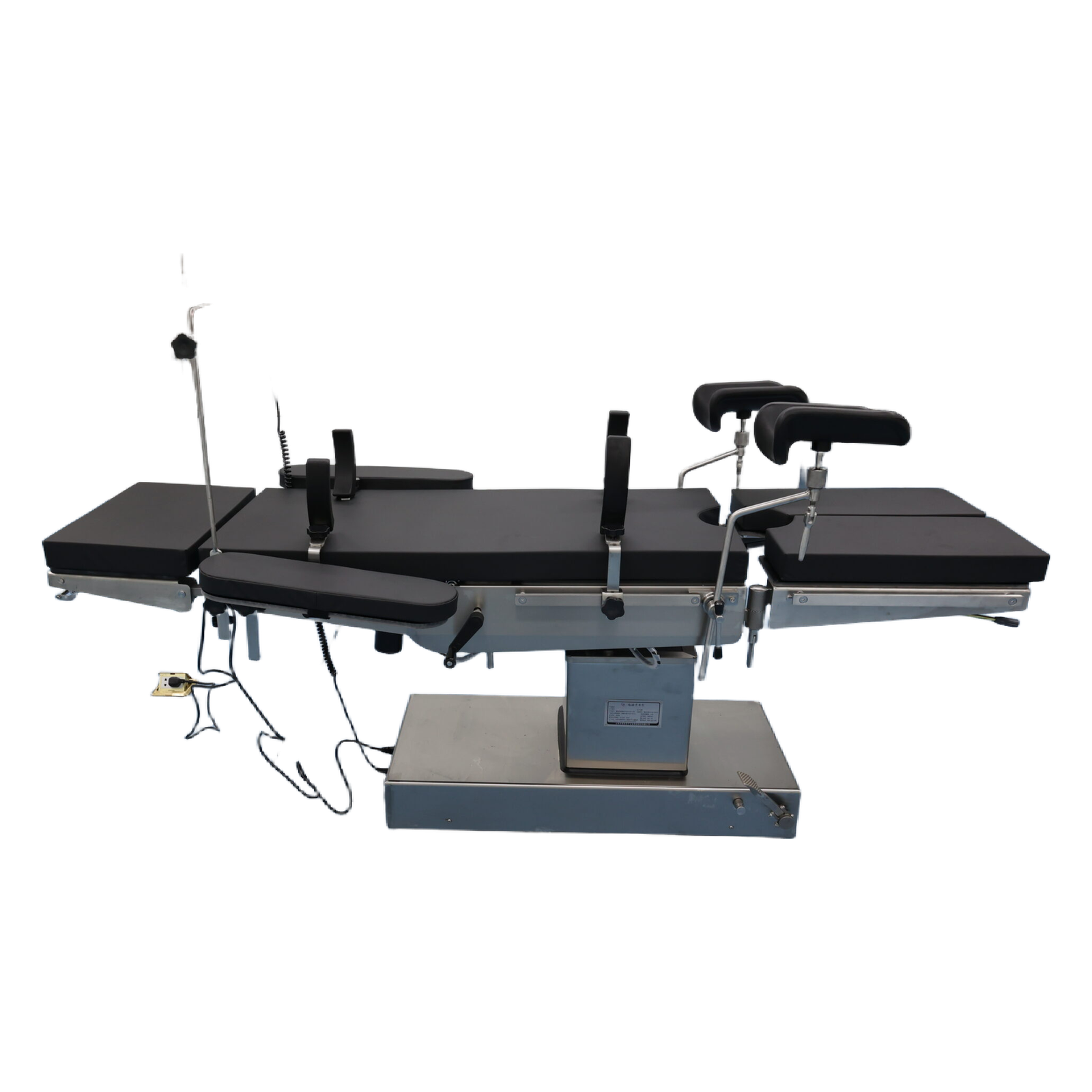

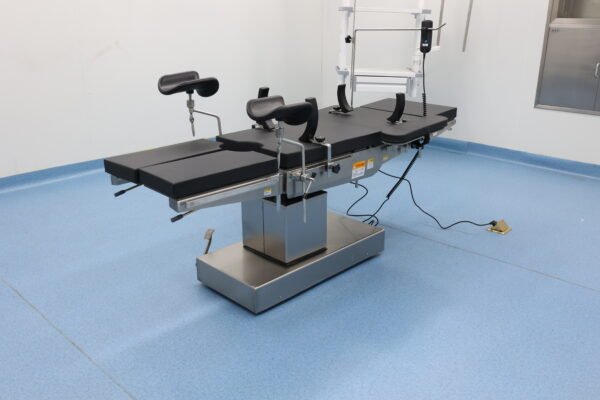

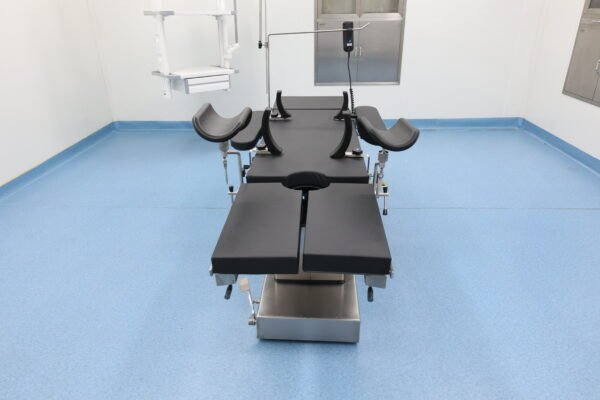

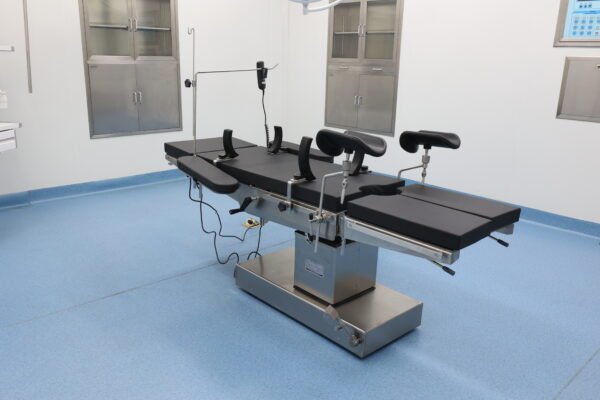

MX-OTPro electric operating table is a new product developed by absorbing more advanced technology at home and abroad. The Main body adopts 304 stainless steel material, satisfy human physiology, has five electric functions, in which the back panel is electric up and down, trendelenburg and reversed-trendelenburg, left and right tilt, and the overall lifting of the electric table. This product has all the functions of a integrated operating table, but also has a horizontal movement function, the table can be greatly moved 40cm, and the panel are all made of high strength plate, which are very convenient for ray observation.
parameter
| Technical parameters (products can be customized as required) | |||||
| Length | 2050±50 mm | Forward | ≥20° | Lower leg plate | ≥90° |
| Wide width | 500±20 mm | Backward tilt | ≥20° | Leg plate outreaching | ≤90° |
| Top table | 920±10 mm | Folding of head plate | ≥45° | Waist rise | 100±10 mm |
| Minimum table | 670±10 mm | Lower head plate | ≥90° | Table translation | 300±20 mm |
| Left | ≥20° | Backplane folded | ≥76° | Power supply | AC220±10,50 HZ |
| Right | ≥20° | Back panel | ≥10° | Packaging | 1405×725×885 mm |
